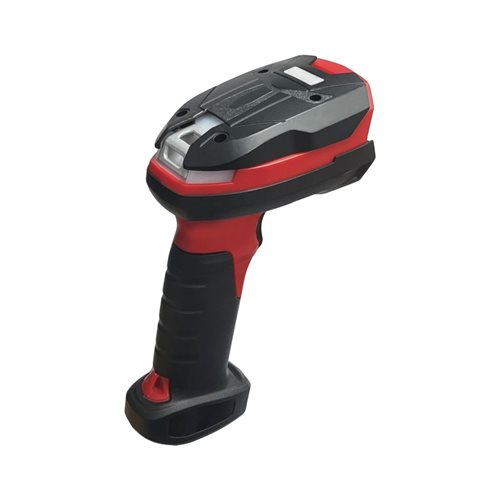

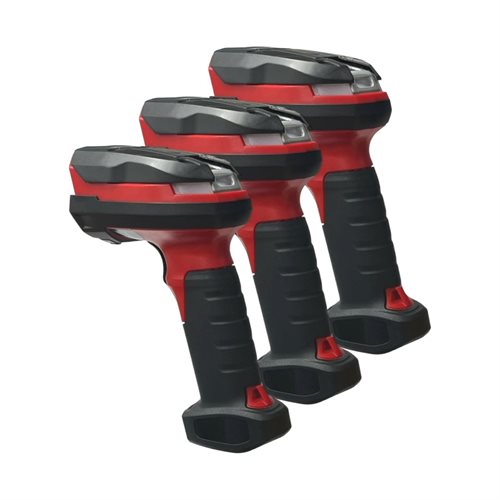

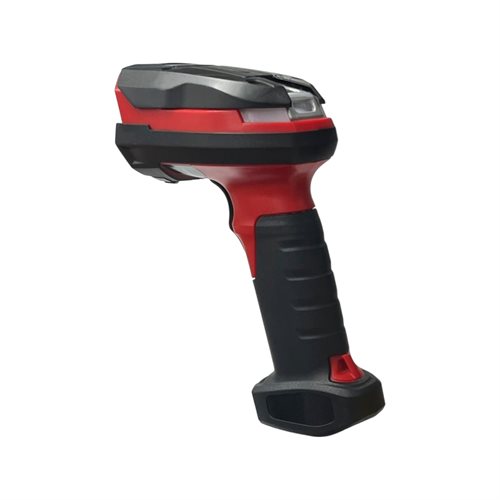

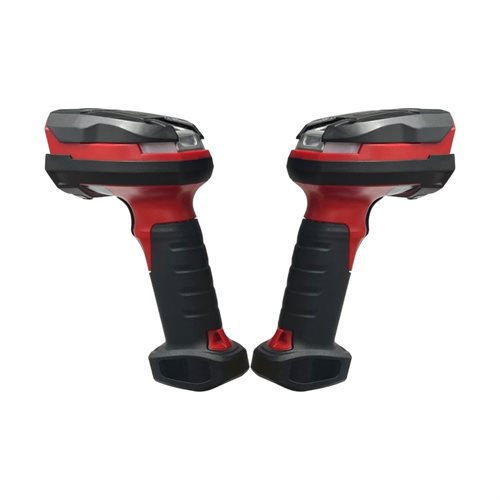

BTH990 Series
Industrial Long-Range 2D Scanner for Warehousing & Logistics — Wired & Bluetooth Wireless

Maximize Forklift Efficiency with 6-Meter Extended Range Scanning

The BTH990 Series is engineered to thrive in demanding industrial environments. Designed for forklift operators and high-rack inventory management, this rugged 2D imager captures 100mil barcodes from up to 6 meters away — keeping operators safely in their seats and throughput consistently high.

The series offers two connectivity options to match your operation: the wired HHS9906H for zero-latency, always-on reliability wherever a fixed terminal is in place, and the Bluetooth wireless BTH9906Hxx for untethered freedom across wide aisles, multi-floor facilities, or dock-to-truck workflows. Both models share the same rugged form factor, advanced 2D imaging engine, and ergonomic gun-style grip — so your team gets a consistent scanning experience regardless of which model they pick up.

Featuring an IP65-rated design and built to withstand 1.2m drops, the BTH990 Series is built to survive daily impacts and environmental hazards. This ensures robust durability while significantly improving operational safety and throughput.

Key Features: Extreme Range, Industrial Durability & 2D Precision

6m Long-Range Scanning (HHS9906H / BTH9906Hxx)

Captures 100mil barcodes from 6 meters (20 ft) away, enabling safe "pick-from-seat" forklift operations without climbing. A capability not found in standard handheld scanners — and not available on the entry-level BTH9900J or BTH9900Jxx.

Bluetooth Wireless Freedom — BTH9906Hxx

Cut the cable without cutting corners. The BTH9906Hxx delivers full wireless mobility with a cradle that doubles as a Bluetooth receiver and charging stand, compatible with Apple iOS, Android, and Windows devices. For operations in low-connectivity zones, the BTH9906HHM and BTH9906HVM add 1MB onboard memory to support offline batch scanning — storing and syncing data when back in range.

Rugged IP65-Rated Design (HHS9906H / BTH9906Hxx)

Sealed against dust and water splashing. Engineered to withstand multiple 1.2m drops to concrete, ensuring reliability in the harshest conditions shift after shift.

Advanced 2D Imaging Technology (HHS9906H / BTH9906Hxx)

Equipped with a superior 2D imager to capture both 1D and 2D codes — including QR Codes — on labels or digital screens, surpassing traditional laser scanners. Reads dirty or damaged barcodes that would stall a lesser device.

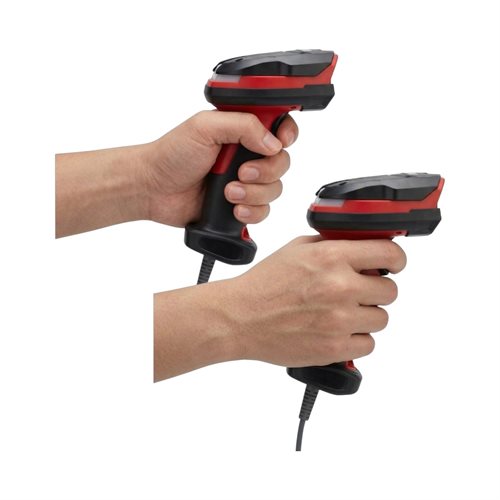

Ergonomic Grip for Intensive Use (HHS9906H / BTH9906Hxx)

A balanced, gun-style design minimizes hand fatigue. Perfectly suited for continuous, high-volume scanning during long work shifts.

Technical Specifications

Model Name	BTH9900Jxx
Description	Rugged 2D Bluetooth Scanner
Models	BTH9900JRU/ BTH9906HRU BTH9900JHU / BTH9906HHU BTH9900JHM / BTH9906HHM BTH9900JVM / BTH9906HVM
Scan Engine	2D Engine
Performance
Illumination Element	White LED
Aiming LED	Red Light : 625nm ± 3nm
Depth of Field	13mil EAN 13: 320 mm
Image Sensor	CMOS (640 x 480 pixels)
Best Resolution	1D (4mil): Code 39 ( 3 mil: Readable) 2D (5mil): PDF417
Scan Angle	Tilt: 360° / Pitch ±60° / Skew ±60°
Print Contrast	≥ 30%
Indicators	LED & Beeper
Interface	USB HID, USB-Serial
Supported Symbologies	1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, ISBN/ISSN, Code 93, Code 11, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded 2D: PDF417, QR Code, Micro QR Code, DataMatrix, Aztec
Electrical
Input Voltage	5V/DC ± 5%
Operating Current	< 320 mA
Radio Range	Bluetooth v5.2 (Class 1): Up to 70~100m Line of Sight (Range Varies by Environment)
RF Frequency	2.4 GHz
Battery Type	3.7V, 3150mAH, Rechargeable Li-Ion Battery Pack
Scans per Charge	More Than 10,000 Scans When Fully Charged
Charge Time	4 ~ 5 Hours
Memory Capacity	[Models with HM, VM] 1MB (Capable of Saving More Than 65,000 Sets EAN-13 Barcodes)
Physical
Dimensions (LxWxH)	(Scanner) 107 x 76.5 x 230 mm
Weight	330g ± 10g
Environmental
Operating Temperature	-5°C to 55°C
Storage Temperature	-15°C to 65°C
Operating Humidity	5% to 95% Relative Humidity, Non-Condensing
Ambient Light	0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode Zone	Note: DOF measured under 800 lux (Office) with standard barcodes. Tolerance: Near ±3 cm / Far ±30 cm. Performance may be affected by barcode quality and ambient conditions.
4 mil Code 39	15 ~ 90 mm
5 mil Code 39	15 ~ 125 mm
13 mil EAN13	10 ~ 310 mm
6.67 mil PDF417	20 ~ 120 mm
10 mil DataMatrix	0 ~ 125 mm
20 mil QR Code	0 ~ 230 mm
100 mil EAN13	-
100 mil DataMatrix	-
100 mil QR Code	-

Model Name	BTH9906Hxx
Description	Rugged 2D Bluetooth Scanner
Models	[RU]: SPP,without Memory [HU}: USB HID,without Memory [HM]: USB HID,with 1MB Memory [VM]: USB Virtual-COM,with 1MB Memory
Scan Engine	2D Engine
Performance
Illumination Element	White LED
Aiming LED	Red Light
Depth of Field	13mil EAN 13: 173cm
Image Sensor	CMOS (1280 x 1024 pixels / 1280 x 1024 pixels)
Best Resolution	1D (4mil): Code 39 2D (6.67mil): PDF417
Scan Angle	Tilt: 360° / Pitch ±60° / Skew ±60°
Print Contrast	≥ 25%
Indicators	LED & Beeper
Interface	USB HID, USB-Serial
Supported Symbologies	1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, 2 of 5 Industial, 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post 2D: PDF417, QR Code, Micro PDF417, Micro QR Code, DataMatrix, Aztec
Electrical
Input Voltage	5V/DC ± 5%
Operating Current	< 620 mA
Radio Range	Bluetooth v5.2 (Class 1): Up to 70~100m Line of Sight (Range Varies by Environment)
RF Frequency	2.4 GHz
Battery Type	3.7V, 3150mAH, Rechargeable Li-Ion Battery Pack
Scans per Charge	More Than 10,000 Scans When Fully Charged
Charge Time	4 ~ 5 Hours
Memory Capacity	[Models with HM, VM] 1MB (Capable of Saving More Than 65,000 Sets EAN-13 Barcodes)
Physical
Dimensions (LxWxH)	(Scanner) 107 x 76.5 x 230 mm
Weight	(Scanner) 340g ± 10g
Environmental
Operating Temperature	-5°C to 55°C
Storage Temperature	-15°C to 65°C
Operating Humidity	5% to 95% Relative Humidity, Non-Condensing
Ambient Light	0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode Zone	Note: DOF measured under 800 lux (Office) with standard barcodes. Tolerance: Near ±3 cm / Far ±30 cm. Performance may be affected by barcode quality and ambient conditions.
4 mil Code 39	19 ~ 40 cm
5 mil Code 39	22 ~ 37 cm
13 mil EAN13	11 ~ 172 cm
6.67 mil PDF417	22 ~ 37 cm
10 mil DataMatrix	17 ~ 47 cm
20 mil QR Code	9 ~ 132 cm
100 mil EAN13	57 ~ 697 cm
100 mil DataMatrix	29 ~ 547 cm
100 mil QR Code	29 ~ 517 cm

Model Name	BTH990 Series
Description	Rugged 2D Handheld Scanner
Performance
Light Source	White LED
Aiming LED	Red Light
Depth of Field	13mil EAN 13: 173cm
Sensor	CMOS (1280 x 1024 pixels)
Best Resolution	1D (4mil): Code 39 2D (6.67mil): PDF417
Scan Angle	Tilt: 360° / Pitch ±50° / Skew ±50°
Print Contrast	≥ 25%
Indicators	LED & Beeper
Supported Symbologies	1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, 2 of 5 Industial, 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post 2D: PDF417, QR Code, Micro PDF417, Micro QR Code, Data Matrix, Aztec
Interface	USB HID/ USB Virtual COM USB-Serial (by Request), RS232 (by Request)
Electrical
Input Voltage	5V/DC ± 5%
Operating Current	< 510 mA
Radio Range	-
RF Frequency	-
Battery Type	-
Scans per Charge	-
Charge Time	-
Physical
Dimensions (LxWxH)	130.2 x 76.9 x 192 mm
Weight	356g ± 5g (with Cable)
Environmental
Operating Temperature	-5°C to 55°C
Storage Temperature	-15°C to 65°C
Operating Humidity	5% to 95% Relative Humidity, Non-Condensing
Ambient Light	0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode Zone	Note: DOF measured under 800 lux (Office) with standard barcodes. Tolerance: Near ±3 cm / Far ±30 cm. Performance may be affected by barcode quality and ambient conditions.
4 mil Code 39	-
5 mil Code 39	23 ~ 38 mm
13 mil EAN13	12 ~ 168 mm
6.67 mil PDF417	23 ~ 38 mm
10 mil DataMatrix	18 - 48mm
20 mil QR Code	10 ~ 133 mm
100 mil EAN13	58 ~ 698 mm
100 mil DataMatrix	30 ~ 548 mm
100 mil QR Code	30 ~ 518 mm

Model Name	BTH9900J
Description	Rugged 2D Handheld Scanner
Performance
Light Source	White LED
Aiming LED	Red Light: 625nm ± 3nm
Depth of Field	13mil EAN 13: 320cm
Sensor	CMOS (640 x 480 pixels)
Best Resolution	1D (4mil)：Code 39 (3mil: Readable) 2D (5mil)：PDF417
Scan Angle	Tilt: 360° / Pitch ±50° / Skew ±50°
Print Contrast	≥ 30%
Indicators	LED & Beeper
Supported Symbologies	1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, ISBN/ISSN, Code 93, Code 11, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded 2D: PDF417, QR Code, Micro QR Code, Data Matrix, Aztec
Interface	USB HID / USB-Virtual COM USB-Serial (by Request) , RS232 (by Request)
Electrical
Input Voltage	5V/DC ± 5%
Operating Current	< 160 mA
Radio Range	-
RF Frequency	-
Battery Type	-
Scans per Charge	-
Charge Time	-
Physical
Dimensions (LxWxH)	130.2 x 76.9 x 192 mm
Weight	352g ± 5g (with Cable)
Environmental
Operating Temperature	-5°C to 50°C
Storage Temperature	-15°C to 60°C
Operating Humidity	5% to 95% Relative Humidity, Non-Condensing
Ambient Light	0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode Zone	Note: DOF measured under 800 lux (Office) with standard barcodes. Tolerance: Near ±3 cm / Far ±30 cm. Performance may be affected by barcode quality and ambient conditions.
4 mil Code 39	25 ~ 100 mm
5 mil Code 39	25 ~ 135 mm
13 mil EAN13	20 ~ 320 mm
6.67 mil PDF417	30 ~ 130 mm
10 mil DataMatrix	10 - 135mm
20 mil QR Code	5 ~ 240 mm
100 mil EAN13	-
100 mil DataMatrix	-
100 mil QR Code	-

Applications & Benefits: Maximizing Efficiency in Warehousing & Logistics

Market	Specific Use Case	Benefit
Warehousing	High-Rack ScanningScans upper-rack labels (up to 6m) directly from the forklift seat. Bulk Pallet VerificationReads barcodes on heavy floor items from a distance without moving them.	Safety & Speed: Eliminates the need to climb ladders or dismount, reducing accident risks and cycle time. Ergonomic Efficiency: Captures data instantly without physical strain, crouching, or moving heavy obstacles.
Manufacturing	Conveyor Belt TrackingScans parts on wide belts while keeping a safe distance from machinery. Harsh Environment AssemblyOperates reliably in dusty, oily, or high-vibration processing zones.	Operational Safety: Protects workers from moving parts or hot zones while ensuring precise WIP tracking. Rugged Reliability: The IP65-rated design prevents downtime caused by environmental contaminants or accidental drops.
Logistics	Damaged Label ReadingDecodes dirty, torn, or poorly printed shipping labels at the dock. High-Volume SortingRapid-fire scanning at busy distribution centers without battery interruptions.	Zero Bottlenecks: Prevents manual entry delays caused by bad labels, ensuring smooth flow at receiving doors. Continuous Throughput: Wired connectivity guarantees zero latency and 24/7 power for non-stop operations.

Market

Specific Use Case

Benefit

Warehousing

High-Rack ScanningScans upper-rack labels (up to 6m) directly from the forklift seat.
Bulk Pallet VerificationReads barcodes on heavy floor items from a distance without moving them.

Safety & Speed: Eliminates the need to climb ladders or dismount, reducing accident risks and cycle time.

Ergonomic Efficiency: Captures data instantly without physical strain, crouching, or moving heavy obstacles.

Manufacturing

Conveyor Belt TrackingScans parts on wide belts while keeping a safe distance from machinery.
Harsh Environment AssemblyOperates reliably in dusty, oily, or high-vibration processing zones.

Operational Safety: Protects workers from moving parts or hot zones while ensuring precise WIP tracking.

Rugged Reliability: The IP65-rated design prevents downtime caused by environmental contaminants or accidental drops.

Logistics

Damaged Label ReadingDecodes dirty, torn, or poorly printed shipping labels at the dock.
High-Volume SortingRapid-fire scanning at busy distribution centers without battery interruptions.

Zero Bottlenecks: Prevents manual entry delays caused by bad labels, ensuring smooth flow at receiving doors.

Continuous Throughput: Wired connectivity guarantees zero latency and 24/7 power for non-stop operations.

Extend Your Reach, Protect Your Investment

The BTH990 Series redefines industrial scanning by combining the versatility of 2D imaging with extreme 6-meter long-range performance — now in both wired and Bluetooth wireless configurations. Whether you rely on the zero-latency dependability of the HHS9906H or the untethered mobility of the BTH9906Hxx, this rugged series delivers. Backed by an IP65-rated design and built to withstand 1.2m drops, it is the reliable choice for businesses that cannot afford downtime. Choose the BTH990 Series to empower your workforce with unmatched safety and throughput.
