MFM120 Series
Compact Fixed Scanner with Corner-Exit Design & RS232 Option

The Versatile Integrator for Industrial Kiosks & Legacy Systems

The MFM120 Series strikes the perfect balance between compact size and industrial ruggedness. Designed to solve common integration headaches, it features a unique corner-exit cable architecture that minimizes installation depth, allowing the scanner to fit into tight spaces where traditional straight-cable models fail. With RS232 support on request and industrial-standard M3 mounting holes, it is the ideal drop-in solution for upgrading legacy ATMs, parking meters, and price checkers. Available with optional IP54 protection, the MFM120 delivers stable, high-performance decoding in a cost-effective package.

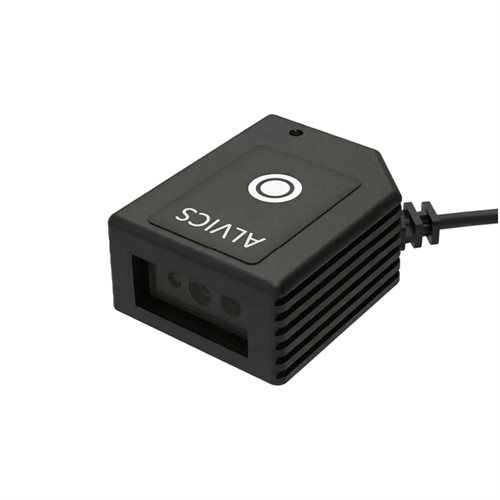

MFM120 Series mini fixed-mount 2D scanner with corner-exit cable, angle view 1
MFM120 Series mini fixed-mount 2D scanner with corner-exit cable, angle view 2

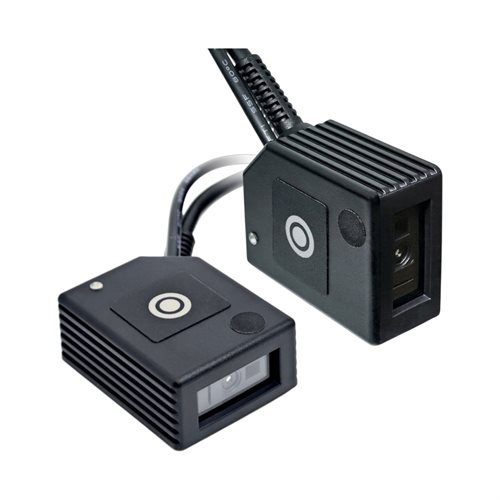

MFM120 Series mini fixed-mount 2D scanner with corner-exit cable, angle view 3

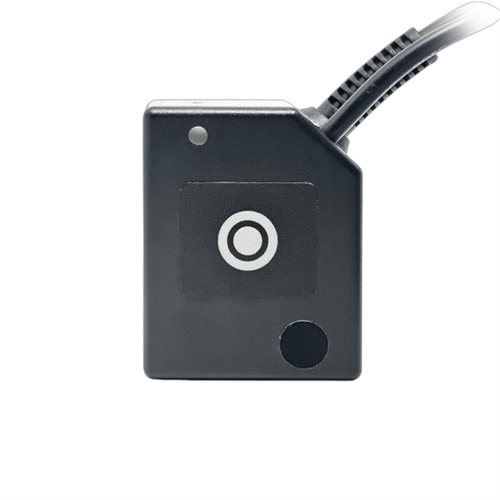

MFM120 Series mini fixed-mount 2D scanner with corner-exit cable, angle view 4

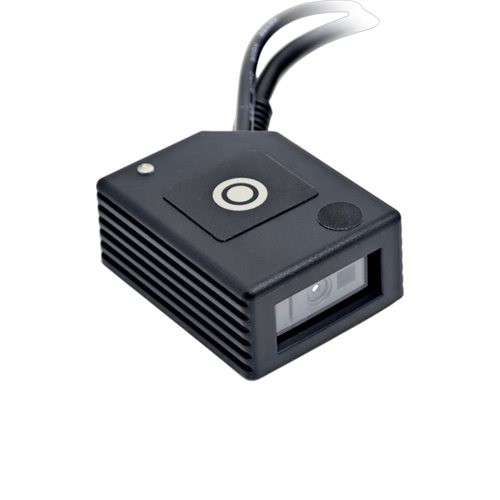

MFM120 Series mini fixed-mount 2D scanner with corner-exit cable, angle view 5

Key Features: Smart Integration & Industrial Versatility

Space-Saving Corner-Exit Design

The cable exits from the corner of the housing rather than straight out of the back, minimizing required installation depth. This allows flat mounting against surfaces in space-constrained kiosks.

RS232 Option & USB Plug-and-Play Connectivity

USB HID is plug-and-play with no extra driver needed, and USB Virtual-COM is available for modern setups. RS232 is available on request for seamless integration into legacy industrial systems (PLCs, older ATMs).

Secure M3 Mounting Standard

Equipped with standard M3 threaded holes for robust installation. Helps keep the scanner securely fixed, including on vibrating equipment, surpassing fragile micro-screw designs.

Flexible IP54 Protection (Optional)

Comes standard with an IP42 housing, with an option to upgrade to IP54 on request (tested in-house). Ideal for semi-outdoor applications like parking meters or drive-thru terminals requiring dust and moisture resistance.

Compact Size, Maximum Value

Combines a compact, protective housing with reliable decoding performance. The MFM120 delivers a high cost-performance ratio for mass deployment in price checkers and ticketing machines.

Technical Specifications

Model NameMFM1200K
DescriptionMini Fixed-Mount Scanner
Scan Engine2D Engine
Performance
Light SourceWhite LED
Aiming LEDRed Light: 625nm ± 3nm
Depth of Field13mil EAN13: 220mm
SensorCMOS (640 x 480 pixels)
Best Resolution1D (4mil): Code 39
2D (5mil): PDF417
Scan AngleTilt: 360° / Pitch ±50° / Skew ±50°
Print Contrast≥30%
IndicatorsLED & Beeper
Supported Symbologies1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, Codabar, Interleave 2 of 5, MSI, GS1 Databar, ISBN, GS1-128
2D: PDF417, QR Code, DataMatrix, Aztec
InterfaceUSB HID, USB Virtual-COM, RS232 (by Request)
Electrical
Input Voltage5V/DC ± 5%
Operating Current≦190mA
Physical
Dimensions (WxHxD)39.2 x 20.6 x 49.6 mm (without Cable)
Weight<52g (with Cable)
Environmental
Operating Temperature0°C to 55°C
Storage Temperature-10°C to 60°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Ambient Light0~80,000 Lux (Total Darkness~ Bright Sunlight)
Decode ZoneMeasured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 3950 ~ 115mm
5 mil Code 3950 ~ 145mm
13 mil EAN1360 ~ 210mm
6.67 mil PDF41750 ~ 135mm
10 mil DataMatrix50 ~ 125mm (30-character data content)
20 mil QR Code40 ~ 240mm

Applications & Benefits: Where Compact Design Meets Efficiency

The compact footprint and flexible cable design of the MFM120 Series help integrators add scanning to space-limited kiosks, legacy equipment, and semi-outdoor terminals.

MarketSpecific Use CaseBenefit
Retail

Price Checkers & Vending
Slim wall-mounted price verifiers or smart vending machines.

Ultra-Slim Integration:
The corner-exit cable design eliminates cable bending space, allowing the scanner to fit perfectly inside thin-profile retail enclosures.

Explore Retail solutions.

Banking & Finance

ATM / VTM Upgrades
Retrofitting legacy ATMs that utilize RS232 interfaces.

Seamless Retrofit:
With RS232 available on request, the scanner can directly replace older laser engines without adapters, revitalizing older banking machines with 2D scanning capabilities.

Explore Access Control & Kiosk solutions.

Transportation

Parking Meters & Gates
Semi-outdoor payment terminals in parking lots or toll stations.

Weather Resistance:
With the optional IP54 upgrade, the scanner resists dust and moisture, supporting reliable operation in semi-outdoor transportation environments.

Explore Logistics & Transportation solutions.

Manufacturing

HMI & Production Control
Embedded scanning for industrial controllers or conveyor belts.

Secure Mounting:
The M3 industrial mounting holes help keep the device securely fastened to vibrating machinery, preventing misalignment during operation.

Explore Manufacturing solutions.

Logistics

Smart Lockers
Pickup/drop-off lockers with limited compartment space.

Space Optimization:
Its compact footprint and smart cable management leave more volume for parcels, making it ideal for high-density locker banks.

Explore Logistics & Transportation solutions.

Healthcare

Medical Analysis Kiosks
Self-service check-in or lab sample tracking machines.

Reliable Stability:
The stable reading performance and robust mounting make it suitable for medical analysis kiosks and patient self-service terminals.

Explore Healthcare solutions.

Government

Public Info Kiosks
Queue management or information stands in city halls/libraries.

Cost-Effective Deployment:
Offers a balance of industrial ruggedness and affordability, providing a high-value solution for large-scale public facility rollouts.

Explore Access Control & Kiosk solutions.

The Smart Choice for Tough Integrations

The MFM120 Series is more than just a barcode scanner; it is a problem-solver for system integrators. By combining space-saving design with legacy-friendly interfaces and industrial ruggedness, it eliminates the headaches of installation and compatibility. Whether you are building new ultra-slim kiosks or breathing new life into old equipment, the MFM120 delivers.

Frequently Asked Questions

What is a corner-exit cable, and why does it matter?
The cable leaves the scanner from the corner of the housing rather than straight out of the back. That reduces the depth needed behind the scanner, so it can be mounted flat in tight kiosk and machine enclosures.

Which interfaces does the MFM120 support?
USB HID (plug-and-play, no extra driver needed) and USB Virtual-COM. RS232 is available on request. It runs on 5V DC.

What is the IP rating?
The standard housing is IP42. An upgrade to IP54 is available on request (tested in-house).

How far can it read?
Measured at 600 lux with standard barcodes: a 4 mil Code 39 reads from 50 to 115 mm, a 5 mil Code 39 from 50 to 145 mm, a 13 mil EAN13 from 60 to 210 mm, and a 20 mil QR Code from 40 to 240 mm (tolerance ±10 mm). Actual range varies with barcode quality and ambient conditions.

How big is it, and how is it mounted?
39.2 x 20.6 x 49.6 mm (W x H x D, without cable) and under 52 g with cable. It has standard M3 threaded mounting holes.
