IFM140 Series
Modular Industrial Fixed Scanner with OCR, DPM & High-Speed Options

The Space-Saving Powerhouse for Industrial Automation

The IFM140 Series is a modular industrial scanning platform designed for space-constrained automation. Encased in a sealed aluminum alloy housing (IP54 design compliance), it provides superior heat dissipation and protection against dust and water splashing. With standard front-view and optional downward-view configurations and high-performance engines supporting OCR, DPM, and high-speed motion, it adapts seamlessly to conveyor belts, electronic assembly lines, and outdoor kiosks.

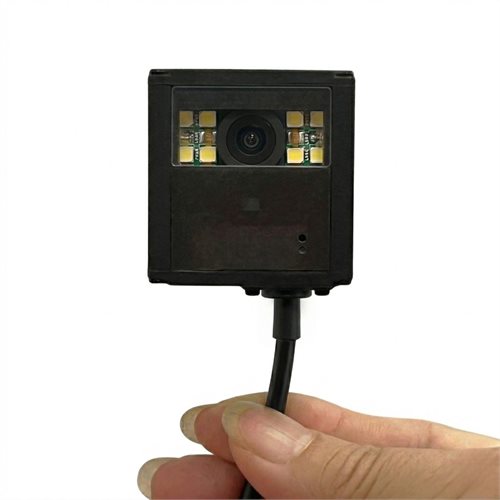

IFM140

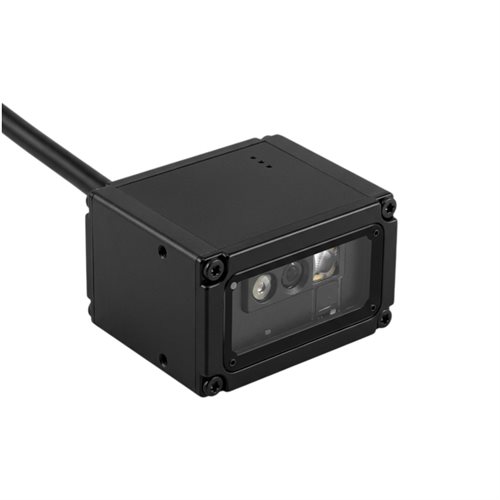

IFM140

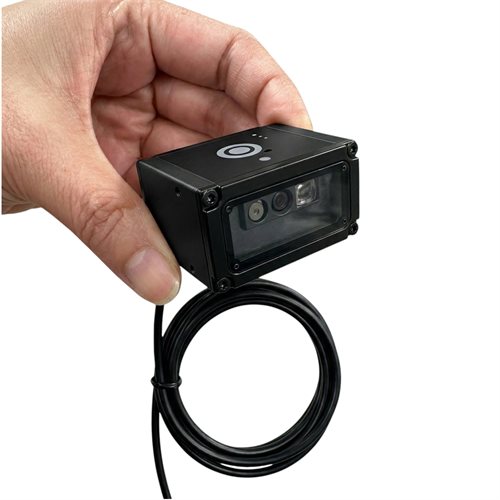

IFM140

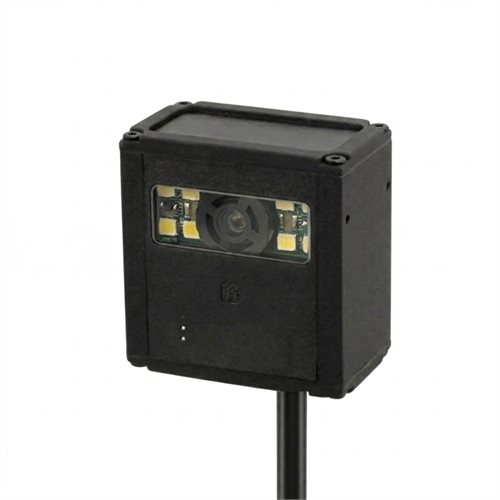

IFM140
IFM140

Key Features: Tailored Industrial Configuration & Protection

Tailored Industrial Configuration

Configurable platform allows users to select specific engine modules (Standard, Long-range, DPM/OCR, or High-speed) and housing orientations to match exact application needs.

Sealed Aluminum Protection

The rugged aluminum alloy housing features gasket-sealed construction (IP54 design compliance) to resist dust, water splashing, and industrial heat.

Modular Dual-Angle Integration

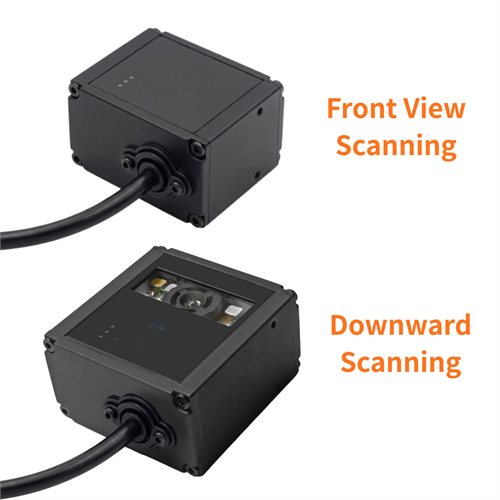

Available in standard front-view and specialized downward-view (right-angle) models, eliminating the need for external brackets in conveyor belt setups.

Advanced OCR & DPM Decoding

The IFM1401M model is engineered to read DPM codes on metallic parts, with optional OCR capabilities available for capturing passport and ID card data.

Exceptional Motion Tolerance

The flagship IFM1420MD features auto-sensing and supports high-speed reading up to 3.0 m/s (max. 10 m/s under optimized settings) for fast-paced production lines.

Industrial Connectivity

Supports versatile interfaces including USB HID, USB-Serial, and RS232 with threaded mounting holes for secure, vibration-resistant installation.

Technical Specifications (Upon Request)

Model NameIFM1406ID
DescriptionIndustrial Fixed-Mount 2D Barcode Scanner
Scan Engine2D Engine
Performance
Light SourceRed LED
Aiming LEDWhite LED
Depth of Field13mil EAN13: 480mm
SensorCMOS (1280 x 1024 pixels)
Best Resolution1D 4mil Code39
IndicatorsLED & Beeper
Supported Symbologies1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Industial 2 of 5, Matrix 2 of 5, Straight 2 of 5, IATA, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, Hong Kong 2 of 5, Korea Post
2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QRCode, Data Matrix, MaxiCode, Aztec
InterfacesUSB HID/ Virtual COM
USB-Serial (by Request), RS232 (by Request)
Electrical
Input Voltage5V/DC ± 5%
Operating Current< 290mA
Physical
Dimensions (WxDxH)41.2 x 35 x 24 mm
Weight< 40g (without Cable)
Environmental
Operating Temperature-5°C to 55°C
Storage Temperature-15°C to 65°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Decode ZoneMeasured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 39 65 ~ 180mm
5 mil Code 39 65 ~ 280mm
13 mil EAN 13 50 ~ 480mm
6.67 mil PDF417 65 ~ 248mm
10 mil DataMatrix 50 ~ 290mm
20 mil QR Code40 ~ 500mm

Applications & Benefits: Where Compact Design Meets Efficiency

MarketSpecific Use CaseBenefit
Manufacturing
(High-Speed Automation)

Fast-Paced Packaging Lines
Automated sorting systems where packages move rapidly on conveyor belts.

Zero-Miss at High Speed: The flagship IFM1420MD (Auto-sensing) comes exclusively in a right-angle housing and withstands motion speeds up to 3.0 m/s, capturing fast-moving codes without stopping the line.

Manufacturing
(Electronics Manufacturing)

PCB & Component Tracking
Reading laser-etched codes on circuit boards and metallic components.

DPM Precision & Flexible Mounting: Choose IFM1401M for side mounting or IFM1401MD (Downward) for overhead mounting. Both accurately decode low-contrast DPM codes on metallic parts.

Logistics & Warehousing

Conveyor Belts & High Shelves
Reading barcodes on boxes of varying heights or distant shelves.

Secure OCR Data Capture: The IFM1401M supports OCR decoding (optional). Its modular design fits perfectly inside slim gates, offering both front-view and downward-view (IFM1401MD) options.

Access Control & Hospitality
(Public Service)

Airport Gates & Hotel Kiosks
Self-service check-in machines scanning passports or ID cards.

Secure OCR Data Capture: The IFM1401M supports OCR decoding (optional). Its modular design fits perfectly inside slim gates, offering both front-view and downward-view (IFM1401MD) options.

Retail
(Self-Service)

Price Checkers & Lockers
General-purpose kiosks for price verification or picking up parcels.

Cost-Effective Versatility: The IFM140J is ideal for standard kiosks. For compact lockers with limited depth, the IFM140JD (Downward) allows for a flush, space-saving installation.

Designed for Industrial Resilience & Flexibility

The IFM140 Series bridges the gap between rugged durability and installation flexibility. By offering a modular combination of high-performance engines (OCR, DPM, High-Speed) and versatile housings (Standard & Downward), it eliminates the need for complex mounting brackets and protects your operation with a sealed aluminum shield. Whether you are building a slim kiosk or a high-speed production line, the IFM140 adapts to your design, not the other way around.

Configure Your Industrial Solution Today Contact us to discuss your project requirements and find the perfect engine and housing combination for your application!
