IFM152 Series
Fixed-Mount 2D Barcode Scanner for Industrial, Kiosk, DPM & OEM Integration

Multiple Engine Options on One Platform: From Kiosk to Conveyor to DPM Reading

The IFM152 Series delivers fixed-mount 2D barcode scanning across industrial production lines, self-service kiosks, and DPM traceability applications. Available in four engine configurations, the entry-level IFM1520J, the high-speed IFM1520M, the long-range IFM1520ML, and the DPM-specialist IFM1521L, the series combines a rugged aluminum housing with plug-and-play USB HID support and optional USB-Serial and RS232 interfaces, to meet embedded scanning needs from basic kiosk integration to industrial conveyor and DPM code reading.

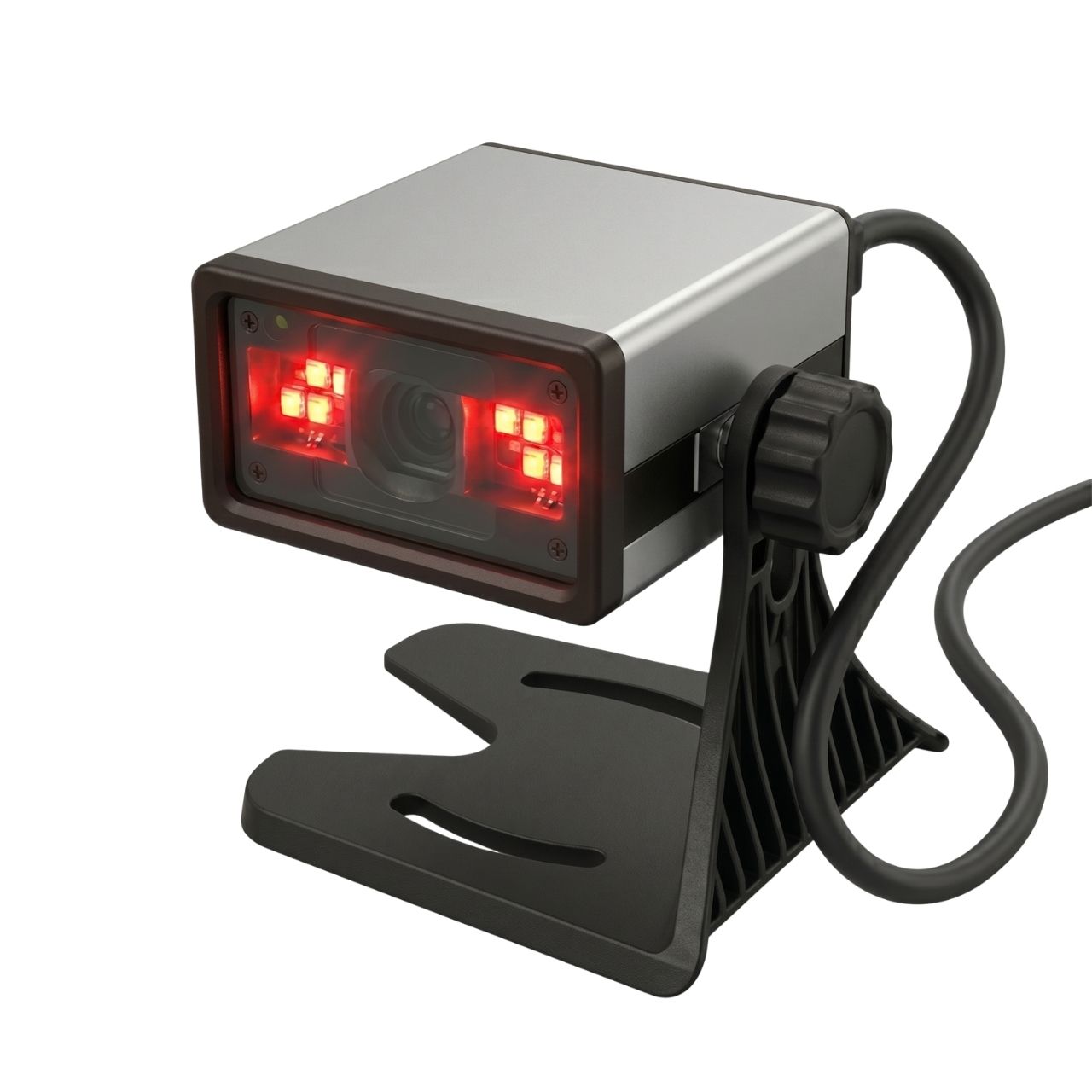

IFM152 Series fixed-mount 2D barcode scanner with stand, angle view 1

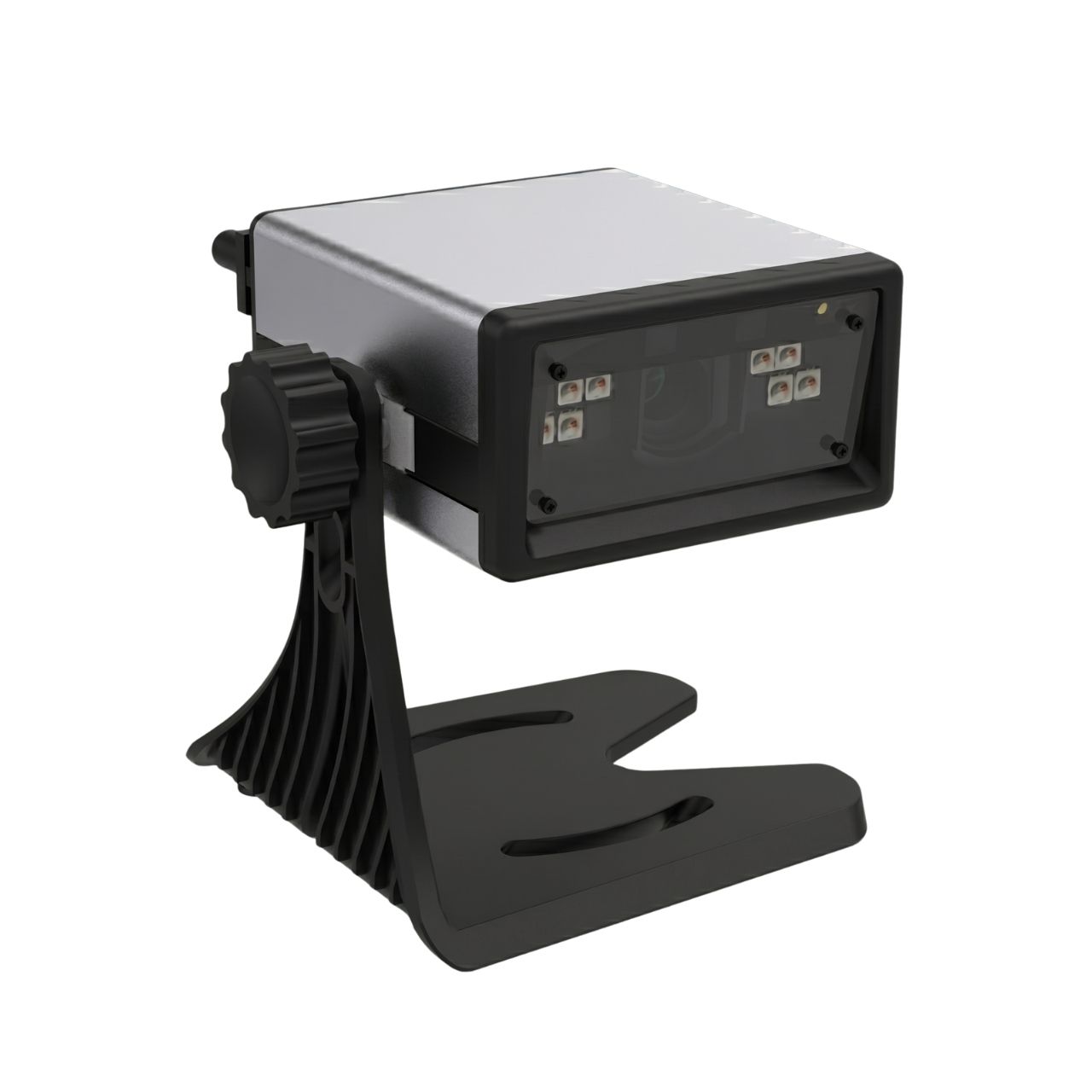

IFM152 Series fixed-mount 2D barcode scanner with stand, angle view 2

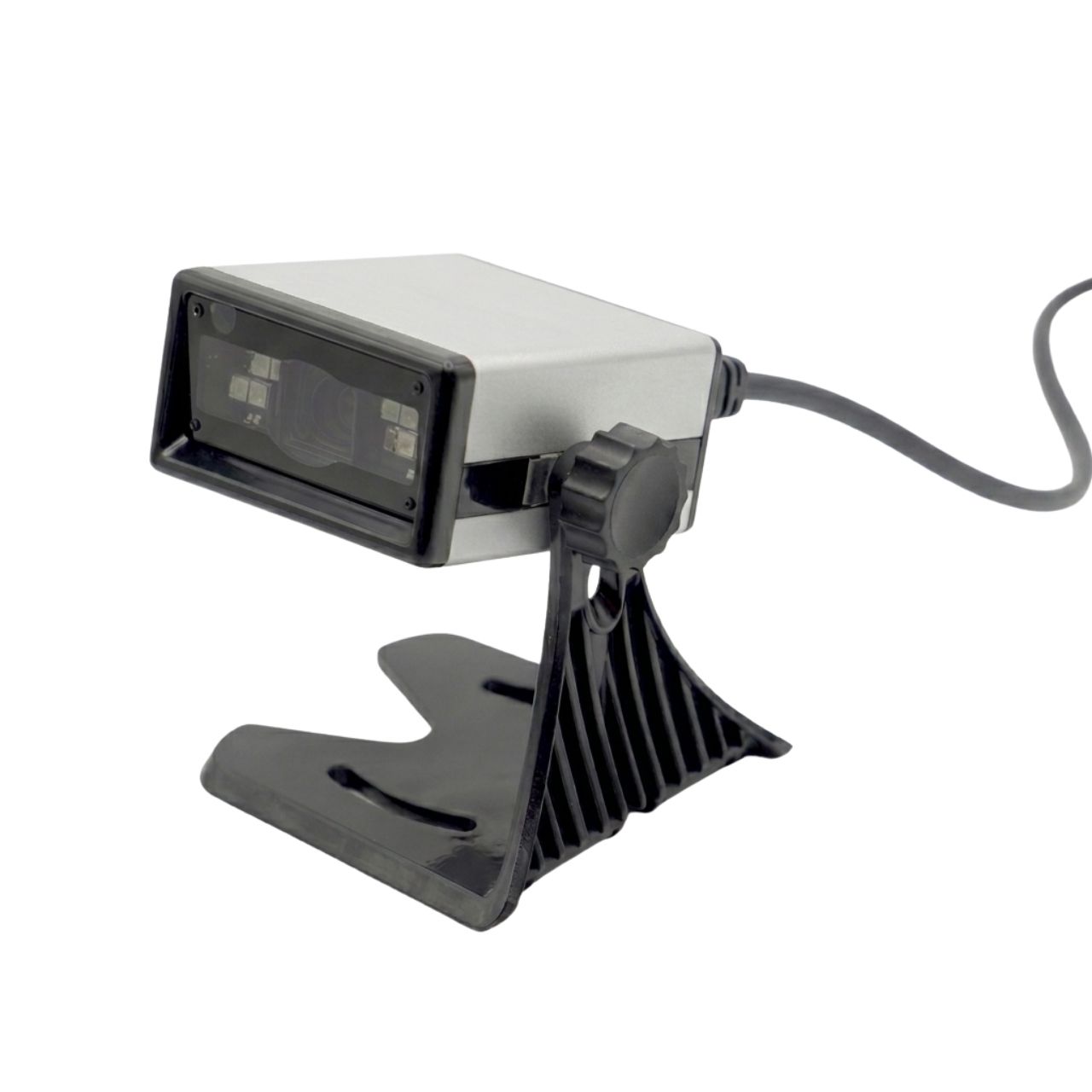

IFM152 Series fixed-mount 2D barcode scanner with stand, angle view 3

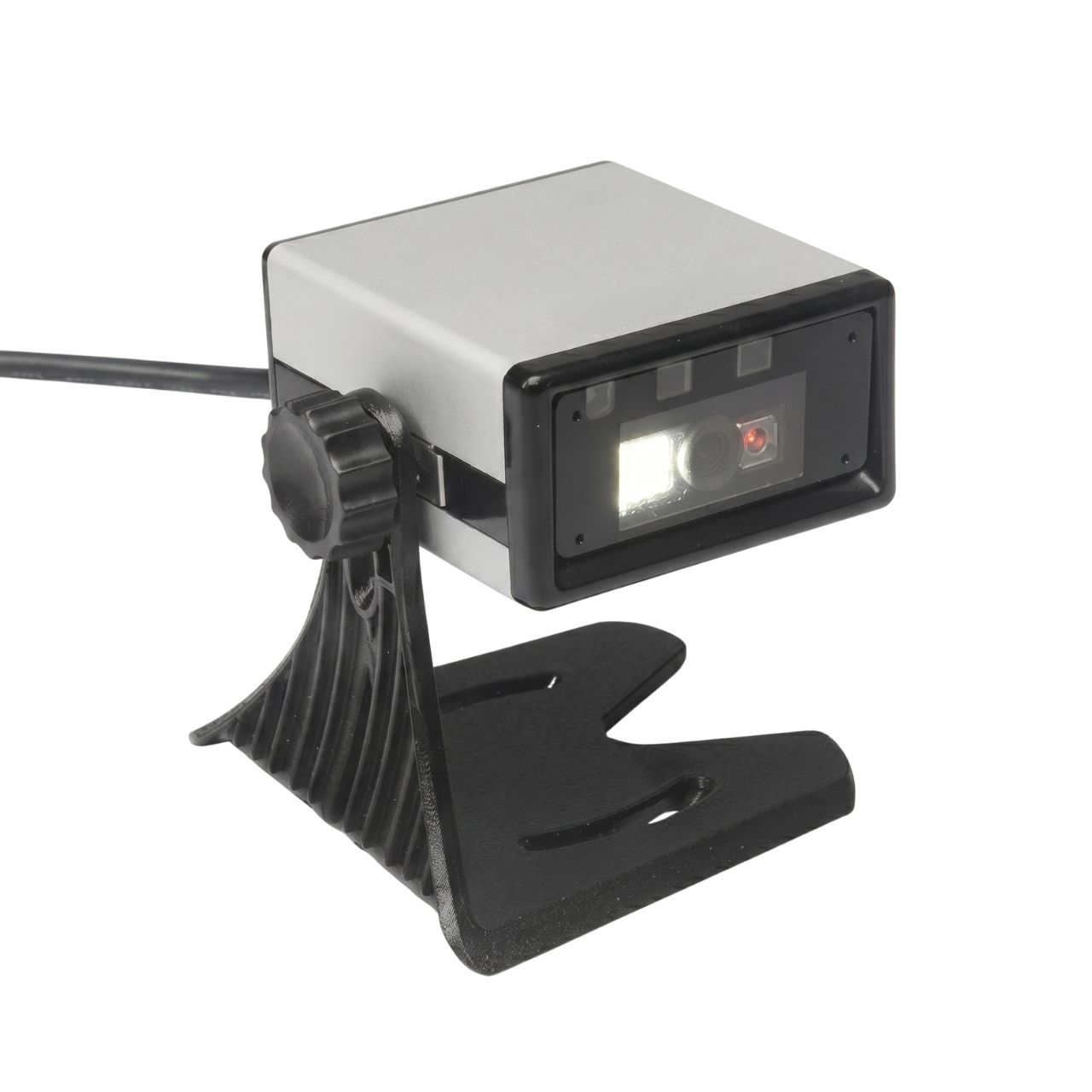

IFM152 Series fixed-mount 2D barcode scanner with stand, angle view 4

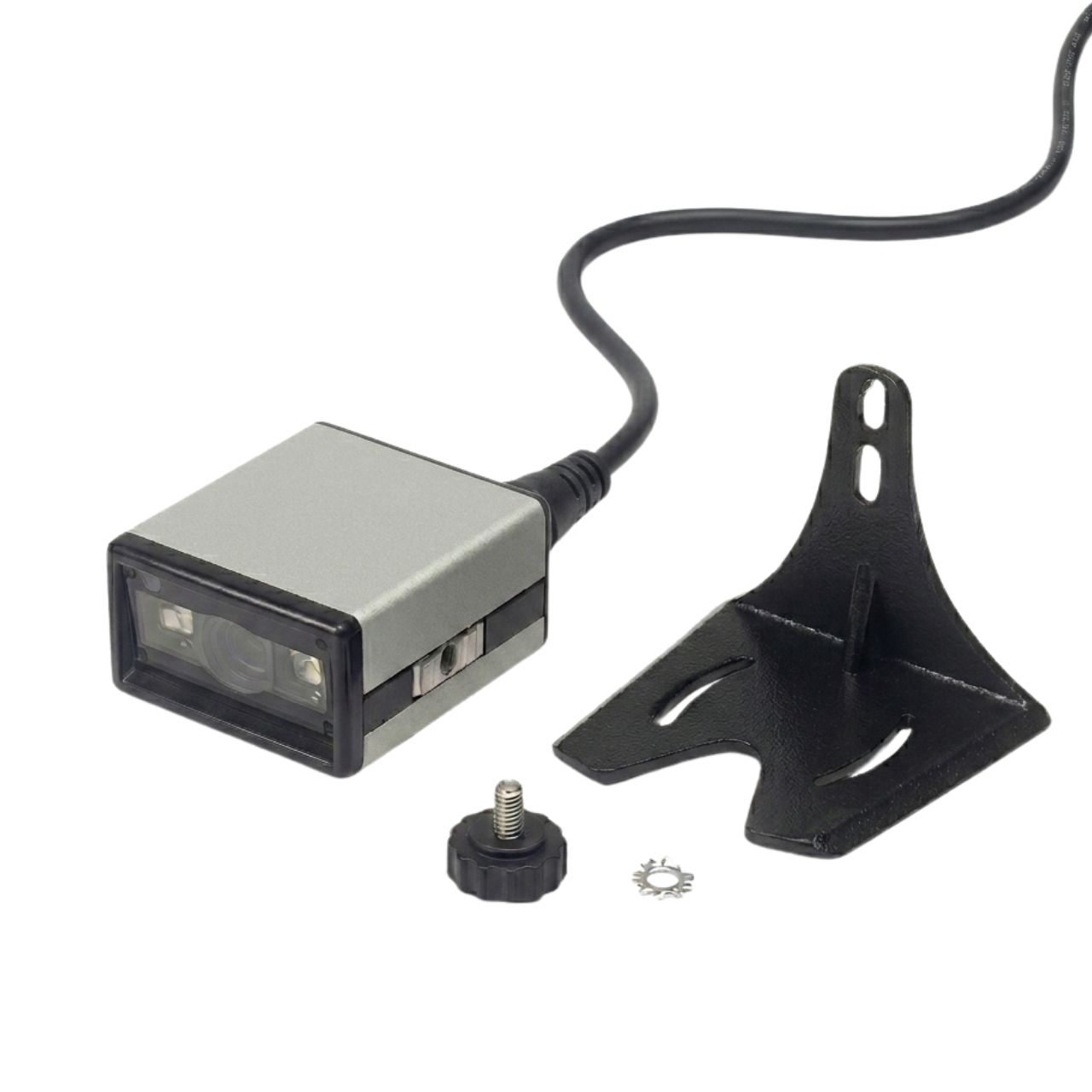

IFM152 Series fixed-mount 2D barcode scanner with stand, angle view 5

Key Features: Industrial Durability, High-Speed Accuracy, DPM Expertise & Versatile Integration

Multiple Engine Configurations on One Platform

From entry-level (IFM1520J) to high-speed (IFM1520M / ML) and DPM-specialist (IFM1521L), all in the same 60 x 54 x 30 mm aluminum and ABS housing, which can simplify mechanical integration when OEM customers change engines.

3.0 m/sec Motion Tolerance (IFM1520M / IFM1520ML)

Designed to read barcodes on fast-moving conveyor items at up to 3.0 m/sec, helping keep high-throughput production lines running.

Flexible Depth of Field: 240mm (IFM1520M) / 500mm (IFM1520ML) / 260mm (IFM1521L)

Choose the depth of field that fits your installation. The long-range IFM1520ML reaches 500mm (13 mil UPC-A) for greater mounting flexibility.

White LED DPM Code Reading (IFM1521L)

Equipped with white LED illumination and a 2D imager, the IFM1521L delivers professional-grade reading of laser-engraved and dot-peen DPM codes for industrial part traceability.

Auto-Sensing Presentation Mode (IFM1521L)

Hands-free automatic barcode detection up to 200mm, suited to ticket gates, vending machines, and stadium or leisure facility access points.

Rugged Aluminum Housing for Industrial Installations

A compact 60 x 54 x 30 mm housing in aluminum and ABS plastic, supplied with a stand and cable, for production lines, ATMs, and kiosks.

USB HID Plug-and-Play with Optional Serial Interfaces

USB HID is standard, with USB-Serial and RS232 available by request, which can shorten integration time for OEM and system integrator projects.

Technical Specifications

Model NameIFM1520M/ IFM1520ML
DescriptionIndustrial 2D Fixed-Mount Scanner
Scan EngineHigh Speed 2D Engine
Scan ModePresentation Mode
Motion Tolerance3.0m/ sec
Performance
Light Source620nm Red LED
Scan Speed60 Frames/ sec
Depth of Field13 mil UPC-A: (IFM1520M) 240 mm, (IFM1520ML) 500 mm
Image SensorCMOS (1280×1024 pixels)
Best Resolution1D (3 mil): Code 39
Scan AngleTilt: 360° / Pitch ±60° / Skew ±70°
Print Contrast≥ 20%
IndicatorsLED & Beeper
Supported Symbologies1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded
2D: PDF417, Micro PDF417, QR Code, Micro QR Code, DataMatrix, Aztec
InterfaceUSB HID, USB-Serial (by Request), RS232 (by Request)
Electrical
Input Voltage5V/DC ± 5%
Operating Current≧ 300 mA
Physical
Dimensions (LxWxH)60 x 54 x 30 mm
WeightIFM1520M: 182g ± 5g
IFM1520ML: 184g ± 5g
(with Cable and Stand)
Case MaterialAluminum & ABS plastic
Environmental
Operating Temperature0°C to 50°C
Storage Temperature-10°C to 60°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Ambient Light0~70,000 Lux (Total Darkness~ Bright Sunlight)
Decoding ZoneMeasured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 39(0M) 30~130mm, (0ML) 100~200mm
5 mil Code 39(0M) 35~160mm, (0ML) 90~250mm
13 mil UPC-A(0M) 30~260mm, (0ML) 65~500mm
6.67 mil PDF417(0M) 25~160mm, (0ML) 100~220mm
10 mil DataMatrix(0M) 25~150mm, (0ML) 100~250mm
20 mil QR Code(0M) 25~250mm, (0ML) 45~400mm
Model NameIFM1521L
DescriptionIndustrial 2D Fixed-Mount Scanner
Scan Engine2D Imager
Scan ModeAuto Sensing up to 200mm
Motion Tolerance-
Performance
Light SourceWhite LED
Aiming LEDRed Light
Scan Speed-
Depth of Field13 mil EAN 13: 260 mm
Image SensorCMOS (640x480 pixels)
Best Resolution1D (3mil): Code 39, 2D (5mil): PDF417
Scan AngleTilt: 360° / Pitch ±60° / Skew ±60°
Print Contrast≥ 20%
IndicatorsLED & Beeper
Supported Symbologies1D: Code 128, EAN-13, EAN-8, Code 39, Trioptic Code 39, Full ASCII Code39, UPC-A, UPC-E, ISBN, ISSN, Codabar, Interleaved 2 of 5, Code 93, Code 32, Industrial 25, Matrix 2 of 5, Code11, GS1 Databar, Codablock A, Codablock F, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, Pharma Code
2D: PDF 417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, QR code URL, QR Code Multi-threshold, QR Code Dot Matrix, Aztec, Composite, Maxi Code, Dot-Code
InterfaceUSB HID, USB-Serial (by Request), RS232 (by Request)
Electrical
Input Voltage5V/DC ± 5%
Operating Current< 220 mA
Physical
Dimensions (LxWxH)60 x 54 x 30 mm
Weight182g ± 5g (with Cable and Stand; heavier with RS232)
Case MaterialAluminum & ABS plastic
Environmental
Operating Temperature-5°C to 50°C
Storage Temperature-15°C to 60°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Ambient Light0~100,000 Lux (Total Darkness~ Bright Sunlight)
Decoding ZoneMeasured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 3945mm - 100mm
5 mil Code 3945mm - 135mm
13 mil EAN 1350mm - 260mm
6.67 mil PDF41735mm - 120mm
10 mil DataMatrix30mm - 140mm
20 mil QR Code20mm - 240mm

Applications & Benefits: From Kiosk Integration to Industrial DPM Traceability

MarketSpecific Use CaseBenefit
Industrial Production Line & Conveyor System
  • Manufacturing assembly lines
  • Logistics sorting conveyors
  • Warehouse automation

High-Speed Reading at 3.0 m/sec (IFM1520M / ML):
Reads barcodes on products moving at up to 3.0 m/sec, helping reduce missed scans. The IFM1520ML extends depth of field to 500mm for deep-chassis equipment.

Explore Manufacturing solutions.

Automotive & Electronics DPM Traceability

Laser-engraved or dot-peen marked automotive parts, PCBs, and precision electronic components requiring permanent traceability.

Professional DPM Code Reading (IFM1521L):
The white LED illumination and 2D imager of the IFM1521L read laser-engraved and dot-peen DPM codes directly on metal or plastic parts, supporting part traceability without paper labels.

Self-Service Kiosk, ATM & Ticket System
  • Ticket barriers
  • Gate entry verification
  • Vending machines
  • Lottery terminals
  • Compact banking kiosks

Plug-and-Play Integration with Auto-Sensing Option:
USB HID plug-and-play. The IFM1521L adds auto-sensing (up to 200mm) for hands-free ticket and QR code reading in high-traffic public environments.

Explore Access Control & Kiosk solutions.

Stadium, Leisure Parks & Entertainment Venues
  • Ticket scanning at entry gates
  • Access control systems
  • Cashless payment terminals at stadiums, theme parks, and leisure facilities

Hands-Free Auto-Sensing for High-Traffic Entry (IFM1521L):
Auto-sensing enables fast ticket scanning without operator assistance, helping reduce queue time and keep visitors moving at busy entry points.

Document Handling, Price Checkers & General Kiosk
  • Document processing stations
  • Price verification terminals
  • Retail scanning counters with standard budget requirements

Entry-Level 2D Scanning (IFM1520J):
The IFM1520J reads standard 1D and 2D barcodes in the same compact aluminum housing, a cost-effective choice for budget-conscious kiosk and retail integration projects.

Explore Retail solutions.

OEM Custom Integration

Any OEM or SI project requiring embedded barcode scanning with flexible interface options across different performance tiers.

One Platform, Flexible Options:
All IFM152 models share the same housing size, which can simplify mechanical integration when specifying a different engine per project. USB HID is standard; USB-Serial and RS232 are available by request. Optional customization available upon MOQ.

A Scalable Scanning Platform for OEMs and System Integrators

The IFM152 Series gives OEM manufacturers and system integrators a single compact platform that scales from entry-level kiosk scanning (IFM1520J) to high-speed conveyor reading (IFM1520M / IFM1520ML) and DPM code reading (IFM1521L). One platform, four engine options.

Frequently Asked Questions

Which IFM152 model should I choose?
The IFM1520M reads moving items at up to 3.0 m/sec with a 240 mm depth of field (13 mil UPC-A). The IFM1520ML extends the depth of field to 500 mm. The IFM1521L adds auto-sensing up to 200 mm for kiosks and ticket gates, and reads DPM codes. The IFM1520J is the entry-level option for kiosks and retail counters.

Can it read barcodes on a moving conveyor?
The IFM1520M and IFM1520ML have a motion tolerance of 3.0 m/sec and a scan speed of 60 frames per second.

Which interfaces are supported?
USB HID is standard. USB-Serial and RS232 are available by request. All models run on 5V DC.

Does the IFM152 Series read DPM codes?
Yes. The IFM1521L reads laser-engraved and dot-peen DPM codes directly on parts, using white LED illumination.

How far can it read?
Measured at 600 lux with standard barcodes: the IFM1520M reads a 13 mil UPC-A from 30 to 260 mm, the IFM1520ML from 65 to 500 mm, and the IFM1521L reads a 13 mil EAN-13 from 50 to 260 mm (tolerance ±10 mm). Actual range varies with barcode quality and ambient conditions.
