MFM1321Q
Wide-Angle Fixed 2D Scanner for Kiosks & Access Control

Intuitive Contact Scanning for Self-Service

The MFM1321Q Series enables a frictionless user experience with its omni-directional and contact scanning capabilities. Equipped with a specialized wide-angle lens, it captures large QR codes at near-to-contact range, while its optimized optics effortlessly decode barcodes from dim or dark smartphone screens. Designed for intuitive operation, it ensures rapid throughput at access gates and payment kiosks without requiring precise alignment.

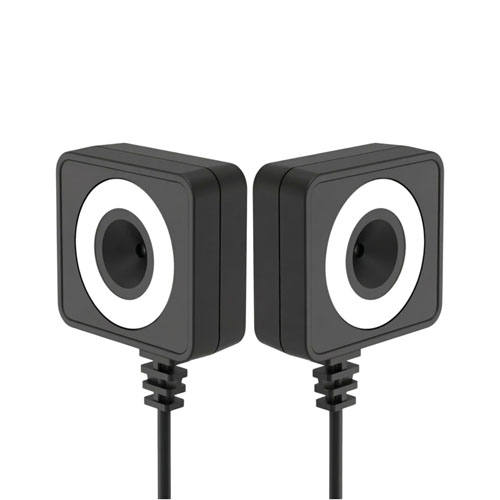

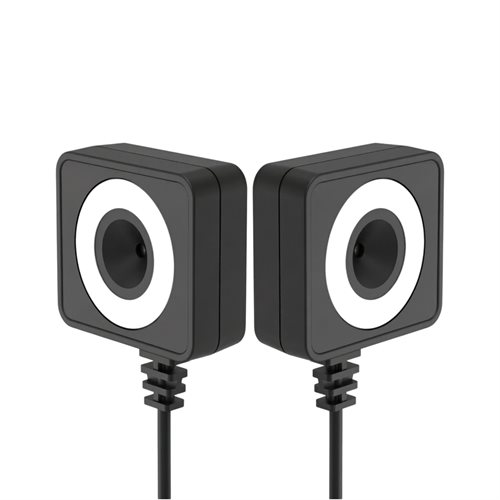

MFM1321Q wide-angle fixed 2D scanner for kiosks and access control, angle view 1
MFM1321Q wide-angle fixed 2D scanner for kiosks and access control, angle view 2

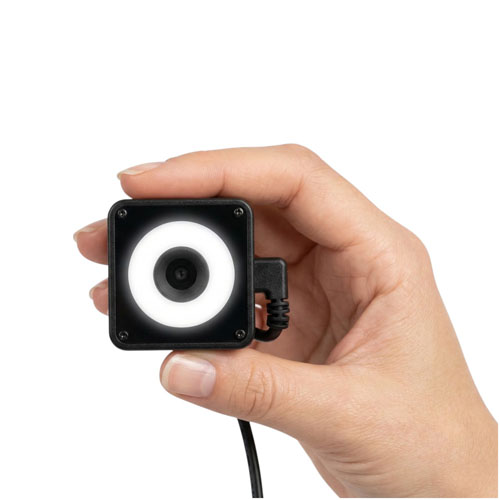

MFM1321Q wide-angle fixed 2D scanner for kiosks and access control, angle view 3
MFM1321Q wide-angle fixed 2D scanner for kiosks and access control, angle view 4
MFM1321Q wide-angle fixed 2D scanner for kiosks and access control, angle view 5

Key Features: Contact Scanning, Wide-Angle Optics & Elegant Design

Wide-Angle Contact Scanning

The wide-angle optics capture large QR codes right up close to the window (from 15 mm), helping eliminate reading dead zones at the gate.

Omni-Directional Reading

Omni-directional scanning allows users to simply "swipe and go" from any angle without needing to align the barcode.

Superior Dark Screen Performance

Specially designed to decode barcodes from smartphone screens with low brightness or dark mode settings.

Elegant Integration Design

Features a sleek, compact aesthetic that fits seamlessly into modern turnstiles and countertop payment terminals.

Plug-and-Play Interfaces

Supports USB HID and USB-Serial interfaces for easy integration into space-limited enclosures.

Technical Specifications

Model NameMFM1321Q
DescriptionMini Fixed-Mount Scanner
Scan Engine2D engine
Scan ModePresentation Mode (Auto Sensing)
Performance
Light SourceWhite LED
Aiming LEDWhite Light
Depth of Field13mil EAN13: 135mm
SensorCMOS (640×480 pixels)
Best Resolution1D (code39)≥ 5mil
2D (QR Code) ≥ 10mil
Scan AngleRoll: 360° / Pitch: ±45° / Skew ±45°
Print Contrast≧25%
IndicatorsLED & Beeper
Supported Symbologies1D: Code 128, EAN128, Code 39, Code 93, Code 11, UPC/EAN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5
2D: QR code, Data Matrix, PDF417
InterfaceUSB HID, USB Virtual-COM
Electrical
Input Voltage5V/DC ± 5%
Operating Current≦ 180mA
Physical
Dimensions (WxHxD)42 x 40 x 20 mm
Weight50 g ± 5 g (with Cable, without Stand)
Environmental
Operating Temperature0°C to 50°C
Storage Temperature-10°C to 60°C
Operating Humidity5% to 95% Relative Humidity, Non-Condensing
Ambient Light0-100,000 Lux (Total Darkness - Bright Sunlight)
Decode ZoneMeasured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
13 mil EAN1315 ~ 135mm
6.67 mil PDF4170 ~ 30mm
20 mil QR Code15 ~ 120mm

Applications & Benefits: Frictionless Self-Service Solutions

MarketSpecific Use CaseBenefit

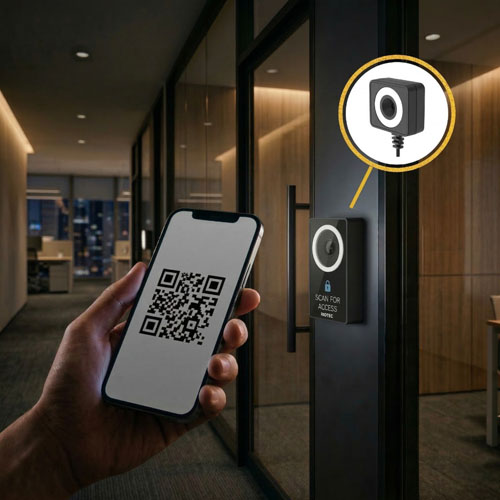

Access Control

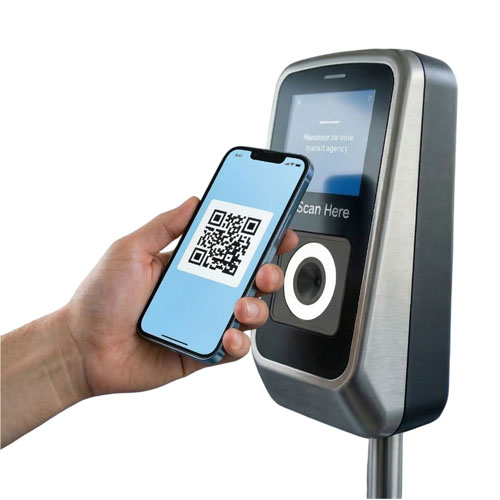

Turnstiles & Metro Gates
Ticket barriers, event entry verification, and office building turnstiles.

Contact & Omni-Directional Efficiency:
Solves the common bottleneck where users press phones against the gate. Supports near-contact reading (from 15 mm) and omni-directional decoding, helping maintain high throughput during peak hours.

Explore Access Control & Kiosk solutions.

Self-Service Kiosks

Ordering & Payment Machines
Food ordering kiosks, parking payment terminals, and vending machines.

"Swipe-and-Go" Simplicity:
The wide-angle lens allows untrained customers to scan large QR codes intuitively without precise alignment or instructions, helping reduce user frustration and queues.

Explore Hospitality solutions.

Countertop Payment

Desktop E-Payment Terminals
Point-of-sale (POS) integration for QR-code mobile payments (such as LINE Pay).

Mobile Screen Optimized:
Specially designed for dim or dark mobile screens, it reads QR codes from smartphones with low brightness settings.

Explore Retail solutions.

Designed for the Human Touch

The MFM1321Q Series bridges the gap between technology and user behavior. By enabling intuitive contact scanning and offering a wide reading angle, it helps reduce user error and speeds up interactions. For integrators seeking a reliable, elegant, and user-friendly scanning solution, the MFM1321Q is the perfect fit.

Frequently Asked Questions

What does contact scanning mean here?
Users can hold a phone or ticket right up to the window. The wide-angle lens reads large QR codes from as close as 15 mm (20 mil QR Code: 15 to 120 mm), so users do not need to step back or align the code.

Can it read QR codes on a dark phone screen?
Yes. The optics are specially designed for reading barcodes on dark or low-brightness smartphone screens.

Which interfaces are supported?
USB HID and USB Virtual-COM. It runs on 5V DC and is operated in presentation mode (auto sensing).

How far can it read?
Measured at 600 lux with standard barcodes: 13 mil EAN13 from 15 to 135 mm, 20 mil QR Code from 15 to 120 mm, and 6.67 mil PDF417 from 0 to 30 mm (tolerance ±10 mm).

How big is it?
42 x 40 x 20 mm (W x H x D). It weighs 50 g ± 5 g with cable and without the stand.
