MFM110 Series
Mini Fixed-mount 2D Barcode Scanner for ATM, Kiosk & Price Checker

Compact Integration for Space-Limited Terminals

The MFM110 Series is specifically designed for small self-service devices where space is at a premium. Its ultra-compact footprint allows for easy installation into ATMs, Kiosks, and Price Checkers without compromising device design. Equipped with a high-performance 2D engine and responsive presentation mode, the scanner automatically captures barcodes from both paper and mobile screens, ensuring operational efficiency in limited-space environments.

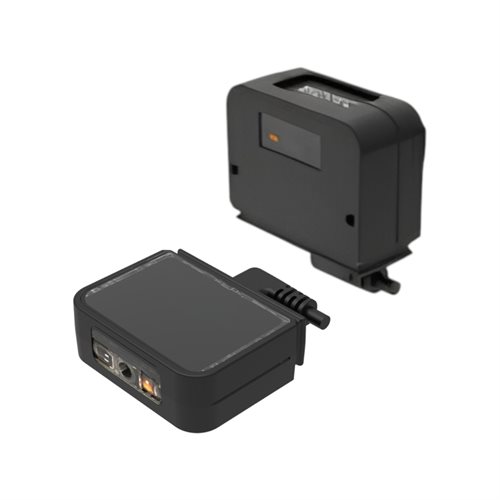

MFM1100K mini fixed-mount 2D barcode scanner, angle view 1
MFM1100K mini fixed-mount 2D barcode scanner, angle view 2
MFM1100K mini fixed-mount 2D barcode scanner, angle view 3
MFM1100K mini fixed-mount 2D barcode scanner, angle view 4
MFM1100K mini fixed-mount 2D barcode scanner, angle view 5

Key Features: Compact Design, Flexible Mounting & Dual-Mode Performance

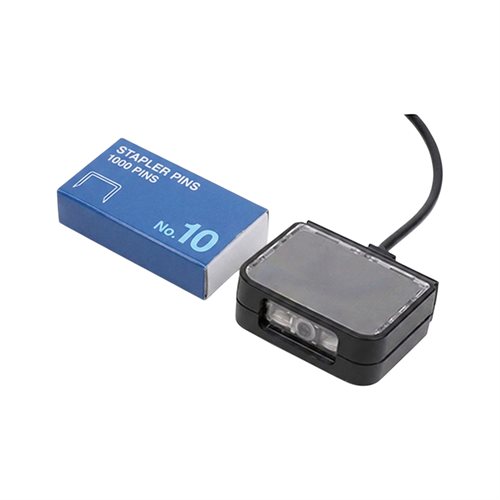

Ultra-Compact Size for Easy Integration

Featuring a coin-sized footprint and lightweight ABS housing, the MFM1100K fits effortlessly into slim Kiosks. It is the ideal solution for devices where standard scanners are too bulky to install.

Dual-Mode Operation: Touch & Auto-Sensing

Supports Touch Reading for manual trigger control and Presentation Mode for automatic barcode detection. This versatility suits both operator-assisted and hands-free self-service scenarios.

Optional Downward Scanning Configuration

Available as a downward-facing model (scanning window at the bottom) for specific integrations. This configuration is perfect for top-mounted installations in turnstiles or vertical gate systems.

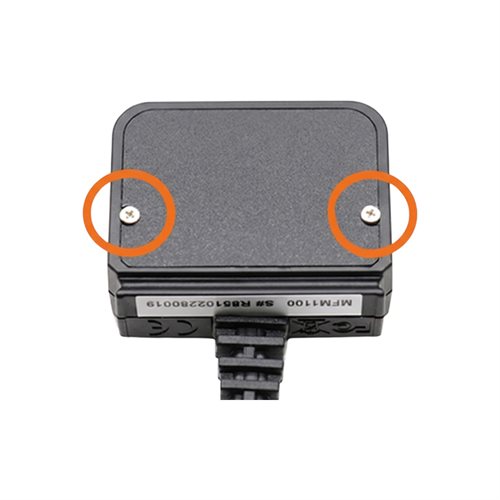

Optional Internal Magnetic Mounting

Customizable with an internal magnet upon request (subject to MOQ). This enables screw-free attachment to metal POS terminals, providing a non-destructive retrofit option.

Versatile Connectivity with Type-C Support

Offers USB-A, Micro USB, and Type-C cable options. The Type-C interface ensures direct compatibility with modern Android tablets and Kiosk controllers without adapters.

Technical Specifications

Model NameMFM1100K
DescriptionMini Fixed-Mount 2D Barcode Scanner
ModelsMFM1100K
MFM1100KD (Downward Scanning)
Performance
Light SourceWhite LED
Aiming LEDRed Light:625nm ± 3nm
Depth of Field13mil EAN13: 250mm
SensorCMOS (640×480 pixels)
Best Resolution4mil Code39
Scan AngleTilt: 360° / Pitch: 50° / Skew: 50°
Print Contrast≧30%
Supported Symbologies1D: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar
2D: PDF417, QR Code, Micro QR Code, DataMatrix, Aztec
InterfaceUSB HID, USB Virtual-COM
Electrical
Input Voltage5V/DC ± 5%
Operating Current≦ 200mA
Physical
Dimensions (LxWxH)34.5 x 43.6 x 15.6 mm (without Cable)
Weight24g (with Cable)
Environmental
Operating Temperature0°C to 50°C
Storage Temperature-10°C to 60°C
Operating Humidity5% to 95% relative humidity, non-condensing
Decode ZoneMeasured at 600 lux with standard barcodes (PCS ≥ 90%). Tolerance: ±10 mm. Actual DOF may vary by barcode quality and ambient factors.
4 mil Code 3955 ~ 150 mm
5 mil Code 3955 ~ 165 mm
13 mil EAN1365 ~ 250 mm
6.67 mil PDF41750 ~ 135 mm
10 mil DataMatrix50 ~ 125 mm
20 mil QR Code40 ~ 240 mm

Applications & Benefits: Where Compact Design Meets Efficiency

The MFM110 Series is built for space-limited terminals, from turnstiles and smart lockers to mini kiosks, ATMs, and POS retrofits, helping integrators add reliable scanning without redesigning the chassis.

MarketSpecific Use CaseBenefit
Access Control

Turnstiles & Smart Lockers
Ticket barriers, gate entry verification, and electronic locker systems.

Seamless Vertical Integration: The optional downward scanning model allows for top-mounted installation in gates, ensuring fast and intuitive code reading for high-throughput areas. Explore Access Control & Kiosk solutions.

Self-Service Kiosks

Mini Kiosks & ATMs
Desktop ordering machines, lottery terminals, and compact banking machines.

Solves Space Constraints: Its ultra-compact footprint acts as a perfect "gap filler", allowing engineers to add scanning capabilities to tightly packed internal designs without altering the chassis. See Kiosk solutions.

Retail

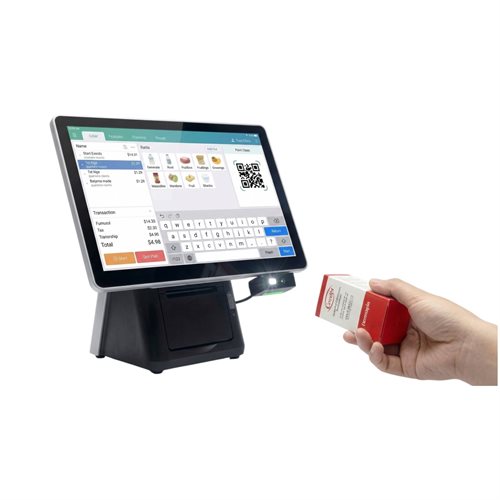

POS Retrofit & Price Checkers
Adding mobile payment (QR code) support to existing POS terminals.

Non-Destructive Upgrade: With the optional internal magnetic mount, retailers can instantly attach the scanner to metal POS units without drilling, enabling QR code payments with zero damage to the counter. Explore Retail solutions.

The Smart Integrator's Choice

The MFM1100K Series proves that powerful performance doesn't require big hardware. By combining a coin-sized footprint with versatile mounting options like downward scanning and magnetic attachment, it offers the ultimate flexibility for system integrators. Stop struggling with limited space—choose the scanner that fits anywhere.

Frequently Asked Questions

What is the difference between the MFM1100K and the MFM1100KD?
The MFM1100KD is the downward-scanning model, with the scanning window at the bottom, designed for top-mounted installations such as turnstiles and vertical gate systems.

Which interfaces and cables are supported?
The scanner supports USB HID and USB Virtual-COM, with USB-A, Micro USB, or Type-C cable options. The Type-C option connects directly to modern Android tablets and kiosk controllers without adapters.

Can it read QR codes on a phone screen?
Yes. Presentation Mode automatically captures barcodes from both paper and mobile screens, and the scanner supports QR Code, Micro QR Code, DataMatrix, PDF417, and Aztec in addition to common 1D symbologies.

Can it be attached to a metal POS terminal without screws?
An optional internal magnet is available upon request (subject to MOQ), allowing screw-free attachment to metal POS terminals.

What is the reading distance?
Measured at 600 lux with standard barcodes, a 13 mil EAN13 reads from 65 to 250 mm and a 20 mil QR Code from 40 to 240 mm (tolerance ±10 mm). Actual range varies with barcode quality and ambient conditions.
